PT33

Specification

TUBES	BRACES	ALLOY	TUBES	BRACES	ALLOY
50 x 2 mm (1.97 x 0.08 in)	16 x 2 mm (0.63 x 0.08 in)	EN AW-6082 T6	50 x 2 mm (2 x 0.08 in)	16 x 2 mm (0.63 x 0.08 in)	EN AW-6082 T6

Offering sleek aesthetics while only minimally compromising on loads, the PT33 system continues to provide TÜV certification with the use of premium, high-quality, sustainable materials and manufacturing processes. With its unique, distinctive, triangular design, this system represents an ideal choice for exhibition stands or retail environments. As with all other variants in our PT range, all you need to connect the trusses together is a small hammer and a pair of good hands, because with TrussWarehouse all connection sets are included FREE!

The PT33 stands for triangle shaped trussing with corner dimensions and connection fittings compatible to Prolyte trusses. Its loading charts are certified by TÜV SÜD and it can be used at numerous occassions for assembling medium size structures. Its both decorative and supportive characteristics make this truss line a great choice for any display booth.

Key features and benefits:

Triangle truss 290 mm (11.42 in)
Certified 50 x 2 mm (2 x 0.08 in) tube
Available in various lengths up to 5 m / 16.4 ft
Span loading certified up to 12 m / 39.37 ft
Interior & exterior applications
Connection kit supplied with straights and corners
Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
Claw clamp 50 for in pipe welding on request
Snap Clamps compatible (8102-8105)
Quicklock connection system for fast assembly
Powder coat color finish available on request
Prolyte compatible

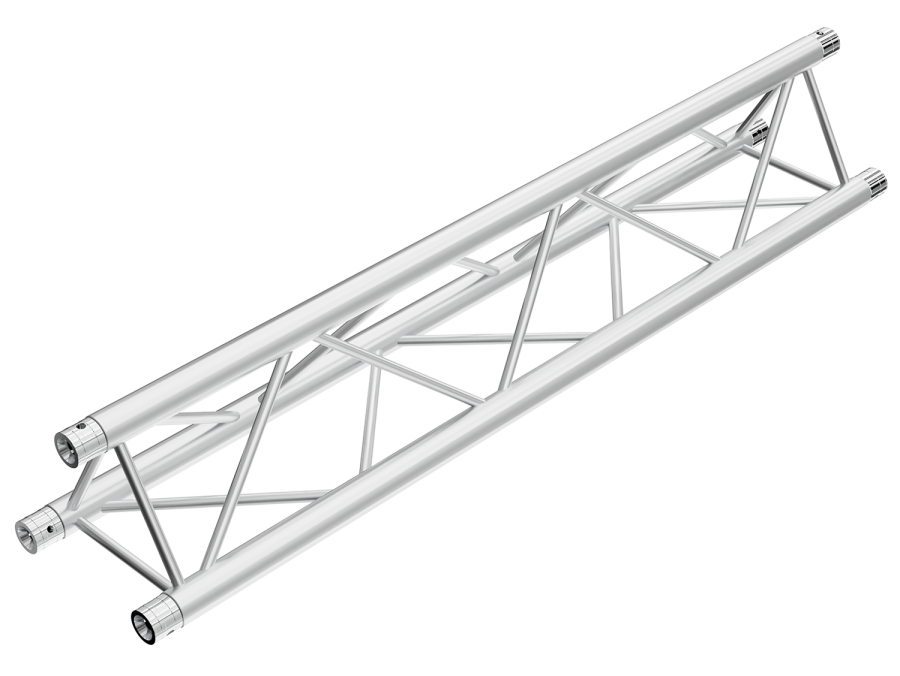

PT33 | Triangular alu spigoted truss 290 x 290 mm Prolyte compatible | trussaluminium – for all your aluminium truss needs

Segments

PT33 straight triangular segments

£103.00

Items

Close

PT33

Specification

Segments

PT33 straight triangular segments

PT33-C19 2-way 45° corner

PT33-C20 2-way 60° corner

PT33-C21 2-way 90° corner

PT33-C22 2-way 120° corner

PT33-C23 2-way 135° corner

PT33-C24 2-way 90° corner apex out

PT33-C24R 2-way 90° corner apex out rounded

PT33-C25 2-way 90° corner apex in

PT33-C25R 2-way 90° corner apex in rounded

PT33-C31 3-way 90° corner apex up right

PT33-C32 3-way 90° corner apex up left

PT33-C33 3-way 90° corner apex down right

PT33-C34 3-way 90° corner apex down left

PT33-T35 3-way vertical T-junction apex down 0,71 x 0,5m

PT33-T36 3-way horizontal T-junction apex up or down 0,71 x 0,5m

PT33-T37 3-way horizontal T-junction apex up 0,71 x 0,5m

PT33-T38 3-way vertical T-junction apex down 0,71 x 0,5m

PT33-T39 3-way vertical T-junction apex up 0,71 x 0,5 m

PT33-C41 4-way cross junction

PT33-T42 4-way T-junction apex down

PT33-T43 4-way T-junction apex up 0.71 x 0.5 x 0.5m

PT33-C44 4-way 90° corner right 0.743 x 0.5 x 0.5m

PT33-C45 4-way 90° corner left 0.743 x 0.5 x 0.5m

PT33-T51 5-way T-junct. apex down 0.743 x 0.71 x 0.5m

PT33-C52 5-way cross junct. apex up 0.71 x 0.71 x 0.5m

PT33-C53 5-way cross junct. apex up 0.71 x 0.5 x 0.5m

PT33-T61 6-way T-junction 0.71 x 0.71 x 0.743m

PT33-C1 Circle apex up/down various diameters

PT33-C2 Circle apex in various diameters

PT33-C2 Circle apex out various diameters
