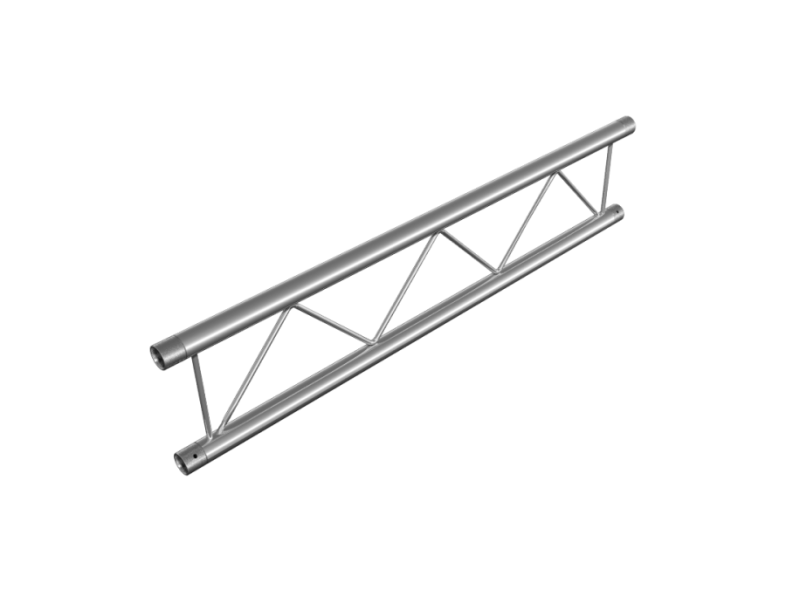

FT22

Specification

TUBES	BRACES	ALLOY	TUBES	BRACES	ALLOY
35 mm x 2 mm (1.4 x 0.08 in)	8 mm (0.3 in)	EN AW-6060 T66	35 mm x 2 mm (1.4 x 0.08 in)	8 mm (0.3 in)	EN AW-6060 T66

Light duty ladder trusses made of two main tubes and braces can be installed in two possible ways. Vertical orientation of the trusses enables you to exploit the full loading capacity of the segments as stated in the loading tables. Horizontal orientation in installments can be done as well, however, a structural engineer needs to verify the structure regarding the maximum loading capacity of such a structure.

The ladder trusses are a perfect fit for smaller booths and set assemblies or at occasions where only a light equipment needs to be supported. Great variety of accessories and half couplers is also available.

Key features and benefits:

220 mm (8.66 in) ladder truss
Certified 35 x 2 mm (1.4 x 0.08 in) tube
Available in various lengths up to 5 m / 16.40 ft
Certified spans up to 10 m / 32.81 ft
Interior & exterior applications
Connection kit supplied with straights and corners
Compatible with 8005, 8006, 8024, 8025, 8027, 8028, 8029 clamps
Quicklock connection system for quick and easy assembly
Powder coat color finish available on request

Price on request
