TS36R

Specification

TUBES	BRACES	ALLOY	TUBES	BRACES	ALLOY
50 x 4 mm (1.97 x 0.16 in)	25 x 3 mm (0.98 x 0.12 in)	EN AW-6082 T6	50 x 4 mm (1.97 x 0.16 in)	25 x 3 mm (0.98 x 0.12 in)	EN AW-6082 T6

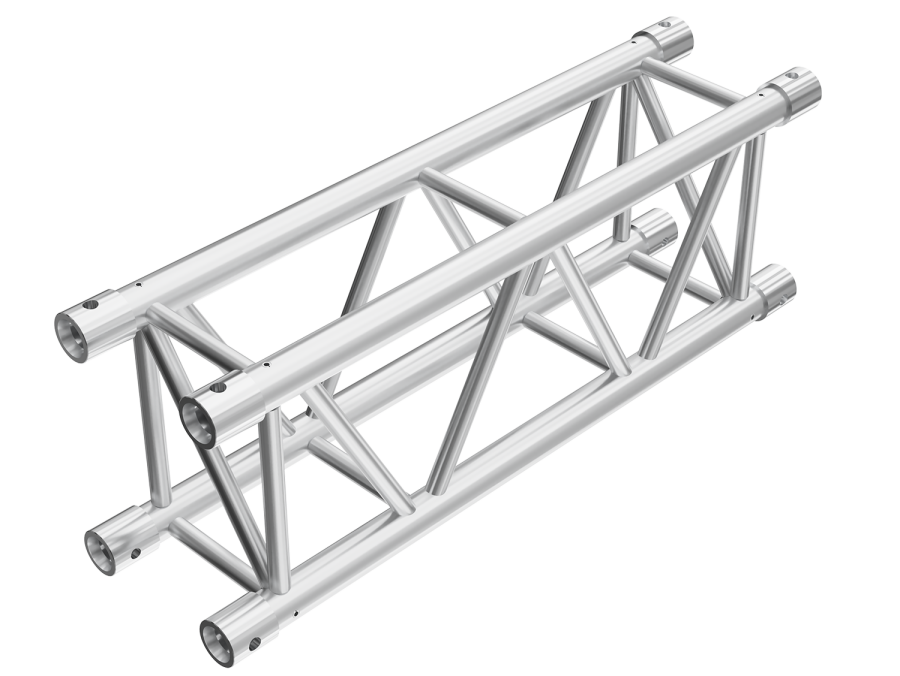

The TS36R is a compact yet robust truss with a sleek rectangular shape, offering the smallest dimensions in our rectangular range. Despite its size, it boasts an impressive loading capacity of up to 20 meters, making it a reliable choice for various applications. Ideal for projects that demand both efficiency and strength, the TS36R combines durability with a space-saving design.

Key features and benefits:

Rectangular truss 267 x 359 mm (10.15 x 14.13 in)
Certified 50 x 4 mm (1.97 x 0.16 in) tube
Available in various lengths up to 3 m / 9.84 ft
Span loading certified up to 20 m / 65.62 ft
Interior & exterior applications
Connection kit supplied with straights and corners
Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
Snap Clamps compatible (8102-8105)
Stack Clamps for easy stacking 8106, 8107
Quicklock connection system for fast assembly
Powder coat color finish available on request

TAF Static Approved

TÜV Süd

Powder coating available

Price on request
