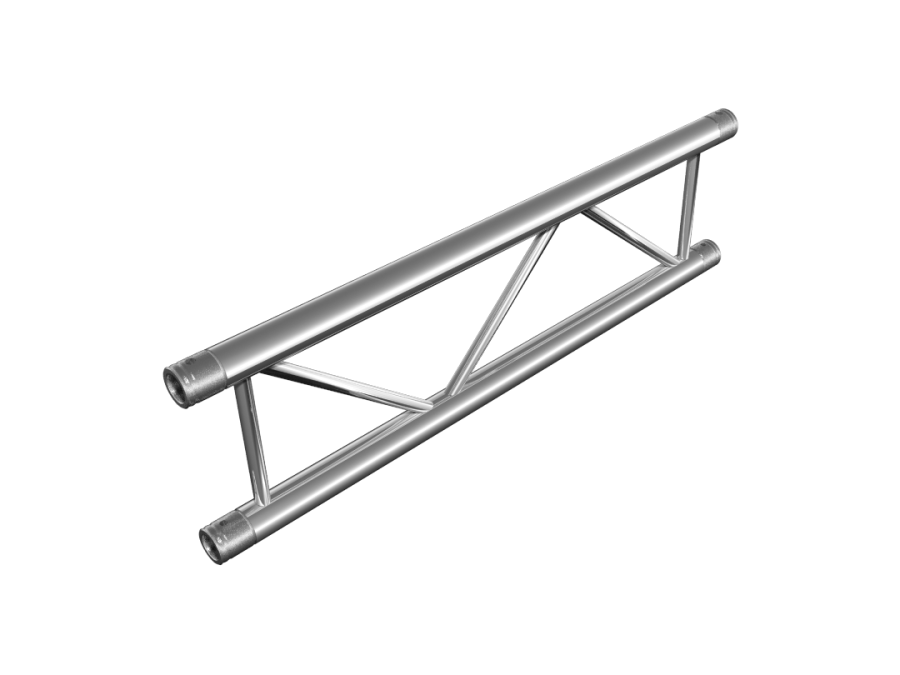

HT32

Specification

TUBES	BRACES	ALLOY	TUBES	BRACES	ALLOY
50 x 3 mm (1.97 x 0.12 in)	20 x 2 mm (0.8 x 0.08 in)	EN AW-6082 T6	50 x 3 mm (2 x 0.12 in)	20 x 2 mm (0.8 x 0.08 in)	EN AW-6082 T6

The HT32 truss line is the heavy duty version of FT32. Larger main tubes increase load capacity. In addition to strength, this truss is easy to stack and transport.

Key features and benefits:

290 mm (11.42 in) ladder truss
Certified 50 x 3 mm (2 x 0.12 in) tube
Available in various lengths up to 5 m / 16.40 ft
Certified spans up to 12 m / 39.37 ft
Interior & exterior applications
Connection kit supplied with straights and corners
Compatible with 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037 clamps
Snap clamp compatible (8102-8105)
Quicklock connection system for quick and easy assembly
Powder coat color finish available on request

TAF Static Approved

Powder coating available

Price on request
